    F080E

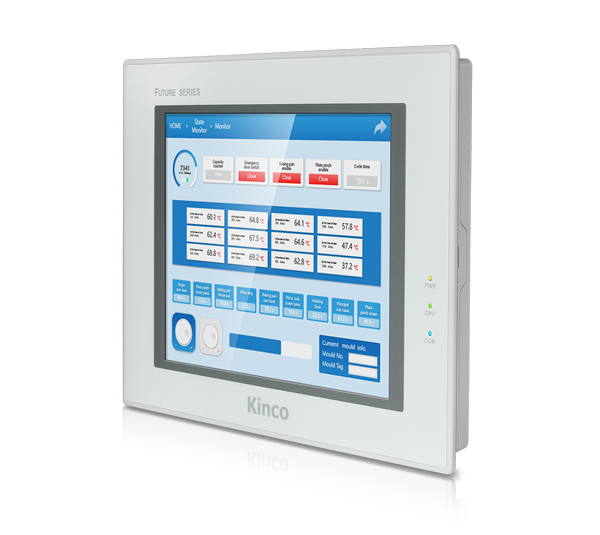

    B–Sports必一 HMI FUTURE Series

    Cortex-A9 Industrial CPU, 1GHz, RAM up to 512M.

    Built - in ferroelectric memory, support formula data unlimited times write.

    Three proofing coating process + Isolated power supply, high reliability.

    Support webcam access, real-time dynamic control.

    SPECIFICATION
    Performance Specification
    Display size

    8" TFT

    Resolution

    800×600 px

    Display color

    16.7M

    Backlight

    LED

    Luminance

    250cd/m?

    LCD life

    More than 30000 hours

    Touch panel

    4-wire precision resistance network (surface hardness 4H)

    CPU

    32bit RISC Cortex-A9 1GHz

    Memory

    4GB Flash Memory+512MB Memory

    RTC

    Built-in RTC+32KB

    External storage

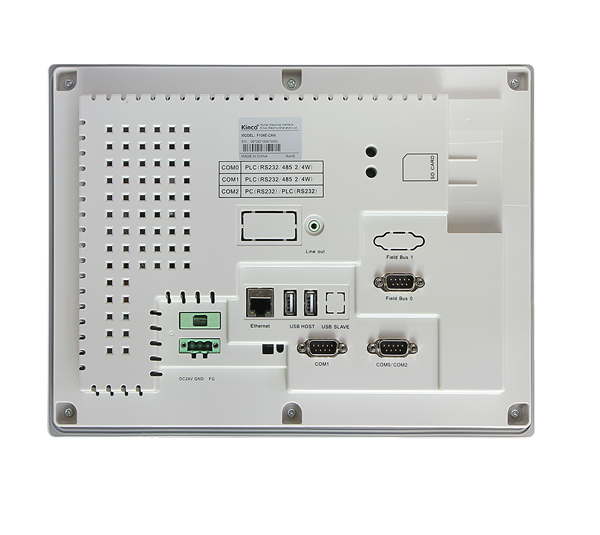

    2 USB Host+1 SD Card

    Printer port

    USB Host/Serial port

    Ethernet

    1*10/100M adaptable Ethernet interface

    Program download

    USB Slave/U Disk/Ethernet

    Communication

    COM0: RS232/RS485/RS422, COM1: RS232/RS485/RS422, COM2: RS232

    Audio output

    1*Audio output

    Electrical Specification
    Input

    DC12V~DC28V, inbuilt isolated power supply

    Power

    8W

    Allowable loss of power

    <3ms

    Insulation resistance

    Over than 50MΩ@500V DC

    Hi-pot test

    500V AC 1 minute

    Structure specification
    Shell color

    Light Gray

    Shell material

    Engineering plastics

    Shape size

    235×172×57.9 (mm)

    Cutout size

    224×161 (mm)

    Weight

    1.27Kg

    Environmental Specification
    Working temperature

    -10~55℃

    Working humidity

    10~90%RH (non-condensing)

    Storage temperature

    -20~60℃

    Storage humidity

    10~90%RH (non-condensing)

    Sine vibration test

    10~500Hz, 30m/s?, X,Y,Z direction/hour

    Cooling mode

    Natural air cooling

    Product Certification
    Panel protection grade

    Conforming to IP65 certification

    CE certification

    Conforming to CE certification

    Software
    Configuration software

    B–Sports必一 DTools V4.1 and above version





    Future Series with a new generation of free software:

    B–Sports必一 DTools Configuration software which has four language versions, simple Chinese, traditional Chinese, English and Korean.

    Supports all installed fonts on the computer system.Internet of things function, support data cloud collection and storage. VNC Screen to screen, screen to computer, screen to mobile phone terminal interoperability. Support installment payment, PDF browsing, operation log record and other convenient control.Guided interface, humanized design, what you see is what you get, can be quickly started.
