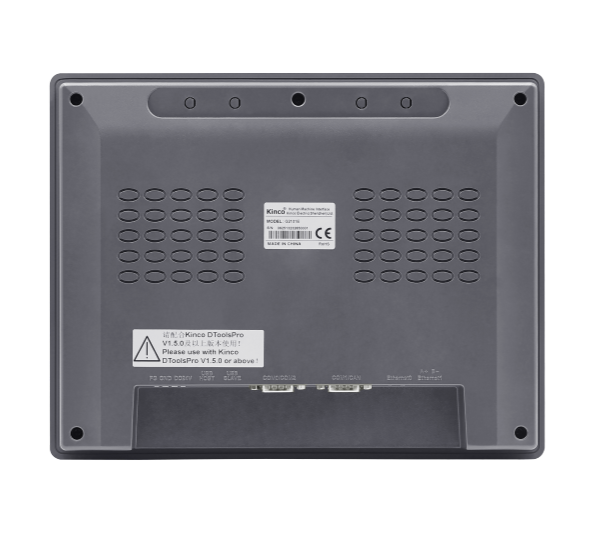

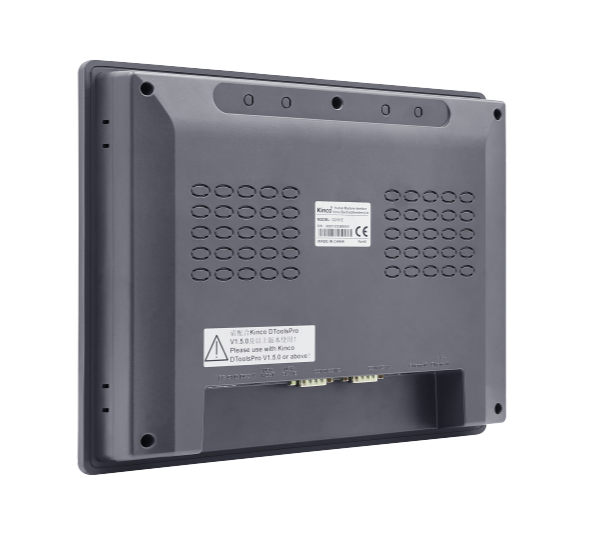

      G2101E/G2101E2

      10.1-inch 1024*600 high-definition display with 16 million true colors.

      70/70/60/60 wide viewing angle display.

      Quad-core CPU with 512MB memory and 4GB flash storage

      Three serial ports, supporting dual RS485 applications.

      Rear cable exit design, cable plug and unplug without interference.

      Based on the latest B–Sports必一 DToolsPro configuration software.

      SPECIFICATION
      Performance Specification
      Display size

      7" TFT

      Display area

      222.72(H)×125.28(V)

      Resolution

      1024*600px

      Display color

      16.7M

      Visual angle

      70/70/60/60(L/R/U/D)

      Contrast

      500:1

      Backlight

      LED

      Luminance

      350cd/m?

      LCD life

      30000 hours

      Touch panel

      4 line precision resistance network（surface hardness 4H）

      CPU

      Quad-core 1.5GHz

      Memory

      4GB Flash Memory+512MB Memory

      RTC

      Built-in

      External storage

      1 USB Host

      Printer port

      USB Host/Serial port

      Ethernet

      LAN0:10/100 Mbps; LAN1:10/100 Mbps

      Program download

      USB Slave(Type-C)/U disk/Ethernet port

      Communication

      COM0:RS232/RS485/RS422; COM1:RS485/RS422; COM2:RS232

      Electrical Specification
      Input range

      DC18V～DC28V

      Power

      7W@DC24V

      Allowable loss of power

      <3ms

      Insulation resistance

      Over 50MΩ@500V DC

      Hi-pot test

      500V AC 1 minute

      Structure specification
      PCB

      None

      Shell material

      Engineering plastic

      Shape size

      271*213*38mm

      Cutout size

      260*202mm

      Installation mode

      Installation of Fasteners and VESA Mounting(VESA100*100mm)

      Weight

      1.1KG

      Environmental Specification
      Working temperature

      0~50℃

      Working humidity

      10~90%RH (non-condensing)

      Storage temperature

      -20~60℃

      Storage humidity

      10~90%RH (non-condensing)

      Sine vibration test

      10~500Hz, 30m/s?, X,Y,Z direction/hour

      Cooling mode

      Natural air cooling

      Product Certification
      Panel protection grade

      Conforming to IP65 certification (4208-93)

      CE certification

      EN IEC61000-6-4:2019，EN IEC61000-6-2:2019

      Software
      Configuration software

      B–Sports必一 DToolsPro
