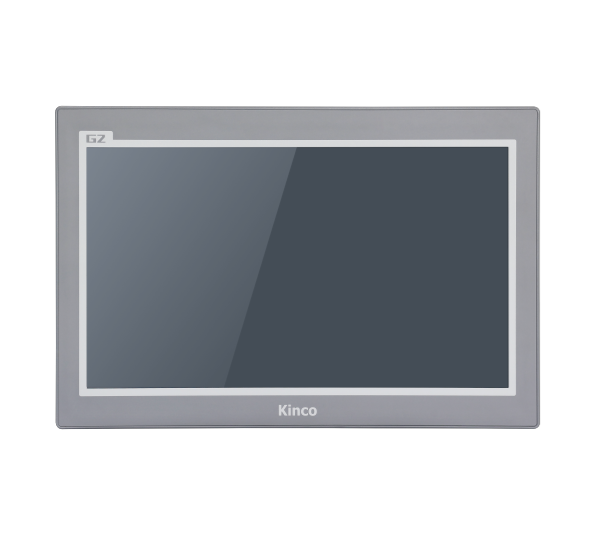

    G2156E/G2156E-WiFi
    B–Sports必一 HMI GREEN Series

    15.6" display with 1920*1080 resolution and 16 million true colors;

    Single Ethernet port and dual serial port design, reliable communication;

    Quad-core CPU with 512MB RAM and 4GB flash storage, ultimate performance;

    Metal shell with power isolation, safe and reliable;

    SPECIFICATION
    Performance Specification
    Display size

    15.6" TFT

    Display area

    344.16mm(W)x193.59mm(H)

    Resolution

    1920*1080px

    Display color

    16.7M

    Visual angle

    80/80/80/80(L/R/U/D)

    Contrast

    1000:1

    Backlight

    LED

    Luminance

    250cd/m?

    LCD life

    ＞20000 hours

    Touch panel

    4 line precision resistance network（surface hardness 3H）

    CPU

    Quad-core 1.8GHz

    Memory

    4GB Flash Memory+512MB Memory

    RTC

    Built-in(512KB)

    External storage

    1 USB Host

    Printer port

    USB Host/Serial port

    Ethernet

    LAN0:10/100 Mbps

    Program download

    Ethernet port/USB Slave/U disk

    Communication

    COM0:RS232/RS485/RS422;COM2:RS232;

    Electrical Specification
    Input range

    DC18V～DC28V,built-in isolated power supply

    Power

    15W@DC24V

    Allowable loss of power

    <3ms

    Insulation resistance

    Over 50MΩ@500V DC

    Hi-pot test

    500V AC 1 minute

    Structure specification
    PCB

    Built-in

    Shell material

    Metal

    Shape size

    395*259*25.5mm

    Cutout size

    381.5*245.5mm

    Installation mode

    Installation of Fasteners and VESA Mounting(VESA100*100mm)

    Weight

    2.5KG

    Environmental Specification
    Working temperature

    0~50℃

    Working humidity

    10~90%RH (non-condensing)

    Storage temperature

    -20~60℃

    Storage humidity

    10~90%RH (non-condensing)

    Sine vibration test

    10~500Hz, 30m/s?, X,Y,Z direction/hour

    Cooling mode

    Natural air cooling

    Product Certification
    Panel protection grade

    Conforming to IP65 certification (4208-93)

    CE certification

    EN IEC61000-6-4:2019，EN IEC61000-6-2:2019
