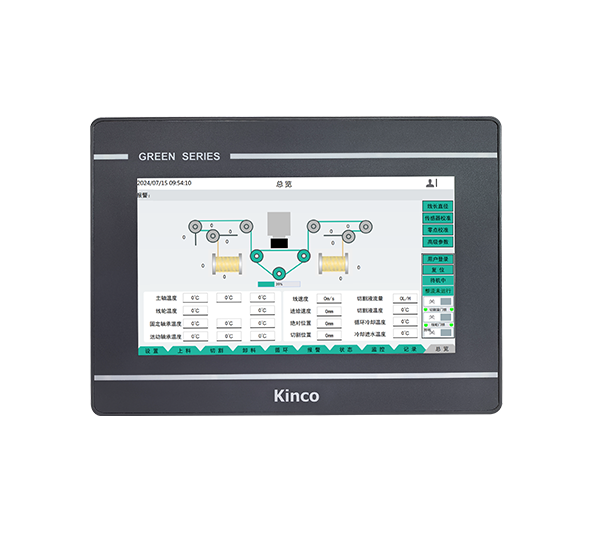

7-inch 1024*600 high-definition display with 16.77 million true colors
85/85/85/85 wide viewing angle display.
Dual-core CPU with 256MB memory and 4GB flash storage.
Single Ethernet port plus three serial ports,supporting dual RS485 applications.
Multiple networking options, Ethernet/Wi-Fi/4G to choose from freely.
Based on the latest EdgeAccess 2.0 version, enjoy seamless loT connectivity.
Based on the latest B–Sports必一 Dtools Pro configuration software.
7" TFT
154.21(H)×85.92(V)
1024*600px
16.77M
85/85/85/85(L/R/U/D)
800:1
LED
450cd/m?
30000 hours
4 line precision resistance network（surface hardness 4H）
Quad-core 1.5GHz
4GB eMMC+256MB RAM
Built-in
1 USB Host,1 USB Slave(Type-C)
USB Host/Serial port
LAN0:10/100 Mbps
USB Slave(Type-C)/U disk/Ethernet port
COM0:RS232/RS485/RS422; COM1:RS485; COM2:RS232
DC10.8V～DC28V
4.2W@DC24V
<3ms
Over 50MΩ@500V DC
500V AC 1 minute
None
Engineering plastic
204*150*37mm
192*138mm
Installation of Fasteners and VESA Mounting(VESA100*100mm)
0.5KG
0~50℃
10~90%RH (non-condensing)
-20~60℃
10~90%RH (non-condensing)
10~500Hz, 30m/s?, X,Y,Z direction/hour
Natural air cooling
Conforming to IP65 certification (4208-93)
EN IEC61000-6-4:2019，EN IEC61000-6-2:2019
B–Sports必一 DToolsPro
Structure of GL2070E
