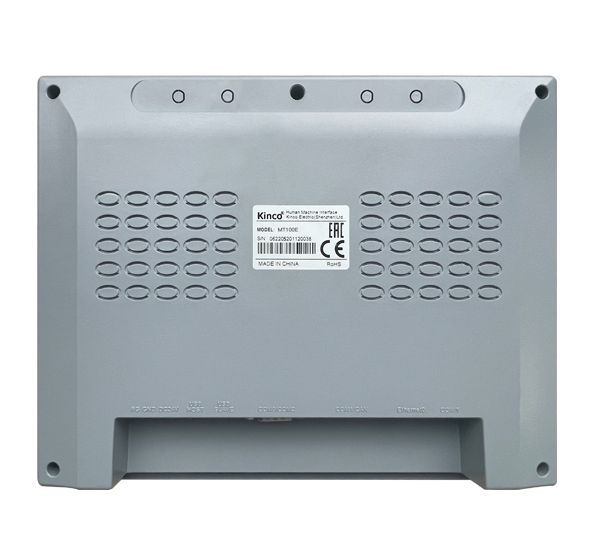

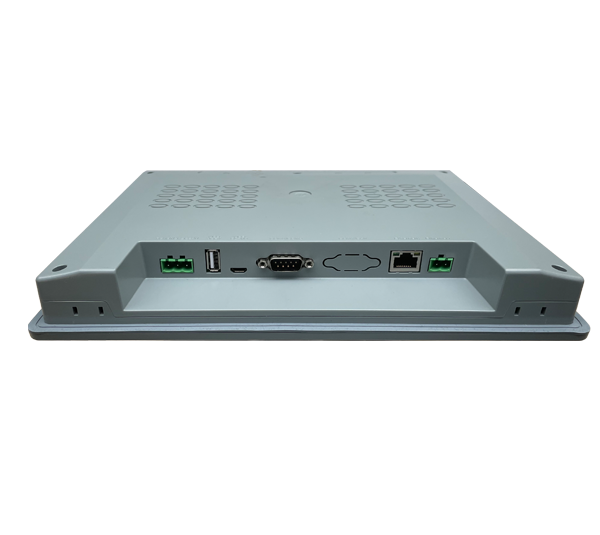

    MT100/MT100E/MT100E-4G
    B–Sports必一 HMI Mass Series

    10.1" HD display, 256k color.

    Support Ethernet function.

    Three serial，COM0 and COM1 support RS485 at the same time

    Product Information
    Performance Specification
    Display size

    10.1" TFT

    Display area

    222.72(W)x 125.28(H)

    Resolution

    1024x600 px

    Display color

    256K color

    Visual angle

    85/85/85/85

    Backlight

    LED

    Luminance

    300cd/m?

    LCD life

    50000 hours

    Touch panel

    4-wire precision resistance network (surface hardness 4H)

    CPU

    ARM RISC 32Bit 792MHz

    Memory

    128MB Flash Memory+64MB Memory

    RTC

    Built-in RTC

    External storage

    1 USB Host

    Printer port

    USB Slave/Serial port

    Ethernet

    10/100M

    Program download

    USB Slave(Micro USB)/Serial port/Ethernet

    Communication

    COM0:RS232/RS485/RS422; COM1:RS485;COM2:RS232

    Electrical Specification
    Input range

    DC10.8V~DC28V

    Power

    7W@ DC24V

    Allowable loss of power

    <3ms

    Insulation resistance

    Greater than 50MΩ@ 500V DC

    Hi-pot test

    500V AC 1 minute

    Structure specification
    Shell material

    Engineering plastics

    Shape size

    271*213*38 (mm)

    Cutout size

    260*202(mm)

    Weight

    1.1Kg

    Environmental Specification
    Working temperature

    0~50℃

    Working humidity

    10~90%RH (non-condensing)

    Storage temperature

    -20~60℃

    Storage humidity

    10~90%RH (non-condensing)

    Sine vibration test

    10~500Hz, 30m/s?, X,Y,Z direction/hour

    Cooling mode

    Natural air cooling

    Product Certification
    Panel protection grade

    Conforming to IP65 certification (4208-93)

    CE certification

    CE: EN61000-6-4:2007+A1:2011，EN61000-6-2:2005

    Software
    Configuration software

    B–Sports必一 DTools V4.1 and above version
